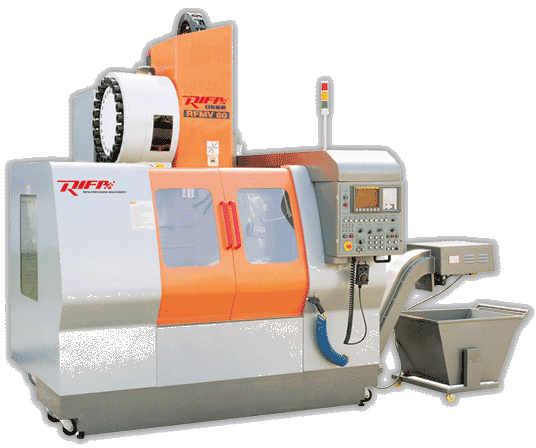

Model RFMV80 Vertical Machining Center
The RIFA product line presents outstanding quality and reliability at a price unmatched in the United States. The RIFA product line offers many name brand components such as the Fanuc controller, FAG spindle bearings, NSK ball screws, THK liner guide and many more familiar and reliable components. Rifa is an ISO9001 Quality Certified company. A quality machine, for a great price.
Standard Equipment
- FANUC Controller
- Rigid Tapping
- Isolation Transformer
- Chip Conveyor
- Air Gun
- Work Light
- Remote Hand Wheel
- RS232 Interface and Cable
- Automatic Central Lubrication System
- Status Light
- Operator Manuals
Specifications |
||||
|---|---|---|---|---|
| X-Axis Travel | 31" | |||
| Y-Axis Travel | 22" | |||
| Z-Axis Travel | 23.6" | |||
| Table | 39.4" x 21.7" | |||
| Weight Capacity | 1323 lbs | |||
| Maximum Spindle Speed | 7000 rpm | |||
| Rapid Feed Rates | 945 ipm | |||
| Spindle HP | 10/15 hp1 | |||
| Swing Arm Tool Changer | 24 tools, 1.8 sec | |||
| Machine Dimensions | 94.5" x 94" x 96" | |||
| Weight | 12125 lbs | |||
1 max power 30min rating
