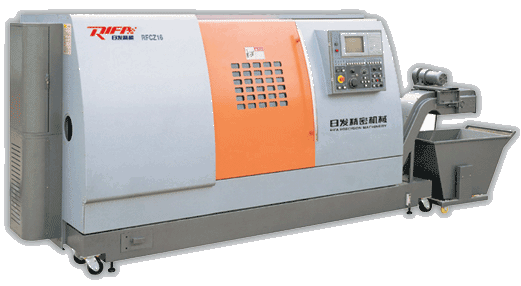

Model RFCZ16 Horizontal Lathe
Standard Equipment
- FANUC Controller
- Isolation Transformer
- Programmable Tailstock
- Chip Conveyor
- Status Light
- Footpetal Clamp/Unclamp
- Spindle Orient
- Air Gun
- Work Light
- RS232 Interface and Cable
- Automatic Central Lubrication System
- Operator Manuals
Specifications |
|
|---|---|
| Swing Over Bed | 18.90" |
| Maximum Machining Diameter | 15.75" |
| Maximum Machining Length | 24.80" |
| X-Axis Travel | 8.66" |
| Z-Axis Travel | 25.60" |
| Spindle Motor | 10/15 hp 1 |
| Maximum Spindle Speed | 5000 rpm |
| Rapid Feed Rates | |
| Hydraulic Chuck | 6” |
| Tool Number | 12 |
| Indexing Time | |
1 max power 30min rating
