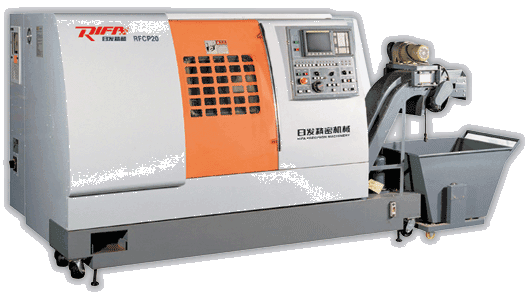

Model RFCP20 Horizontal Lathe
Standard Equipment
- FANUC Controller
- Isolation Transformer
- Programmable Tailstock
- Chip Conveyor
- Status Light
- Footpetal Clamp/Unclamp
- Spindle Orient
- Air Gun
- Work Light
- RS232 Interface and Cable
- Automatic Central Lubrication System
- Operator Manuals
Specifications |
||||
|---|---|---|---|---|
| Swing Over Bed | 13.80" | |||
| Maximum Machining Diameter | 7.90" | |||
| Maximum Machining Length | / | |||
| X-Axis Travel | 5.50" | |||
| Z-Axis Travel | 20.40" | |||
| Spindle Motor | 7/10 hp1 | |||
| Maximum Spindle Speed | 4000 rpm | |||
| Rapid Feed Rates | ||||
| Hydraulic Chuck | 6” | |||
| Tool Number | 8 | |||
| Indexing Time | ||||
